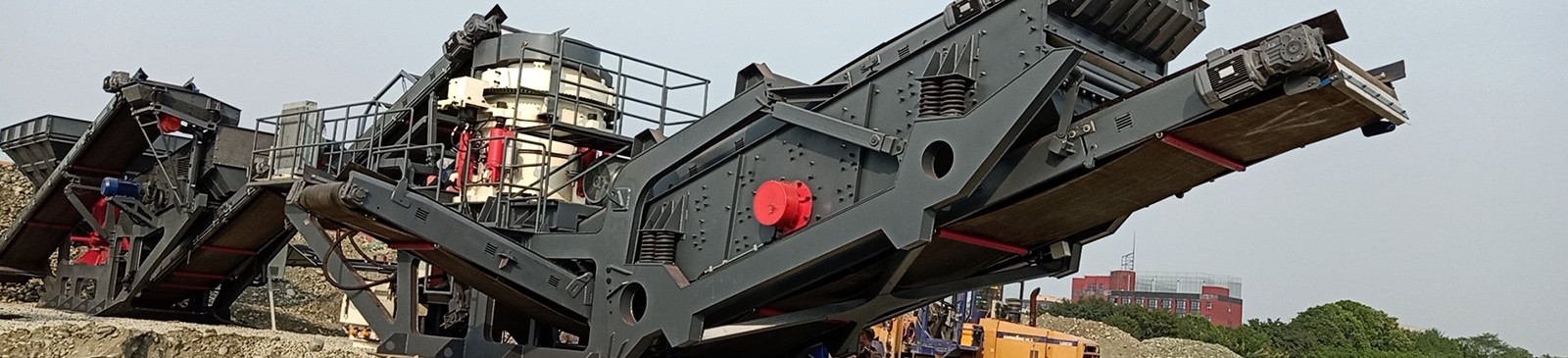

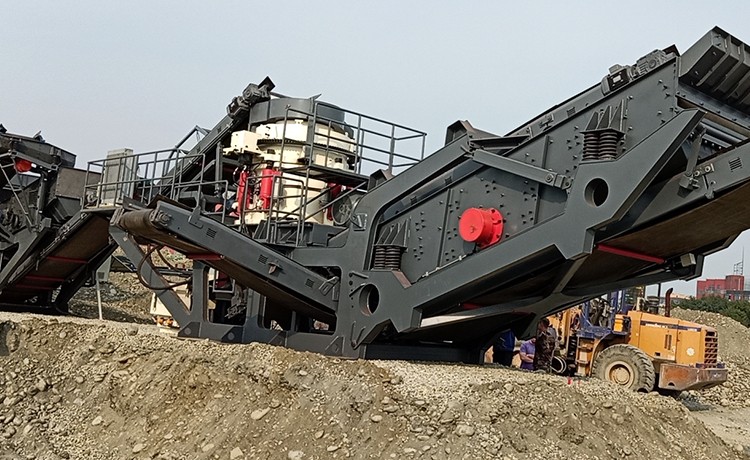

The wheeled mobile cone crusher is composed of a high-efficiency cone crusher, a high-performance vibrating screen, a belt conveyor, a motor and a control box. It is mainly used for recycling of mines, coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites. The mobile cone crusher is mainly used in the field of fine crushing. In the production of sand and gravel, it produces higher hardness and finer grain sand and gravel products according to different stones and the use of finished products.
The machine is compatible with two kinds of crushing processes: “first crushed and then sieved” and “first sieved and then crushed”, which has strong adaptability.
When the machine is changed, the noise is low, the dust is less, and various strict environmental protection requirements are met.
The chassis is specially machined to adapt not only to ordinary roads, but also to the rugged roads of the crushing plant, which can easily cope with all kinds of harsh working environments.
Feeding pre-screening system
New type of crushing host
Side belt conveyor
Technical Specifications
| Model | FTM3S185GYS300 | FTM3S216GYS400 | FTM3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
