HD Series German Type Jaw Crusher HD Series German Type Jaw Crusher

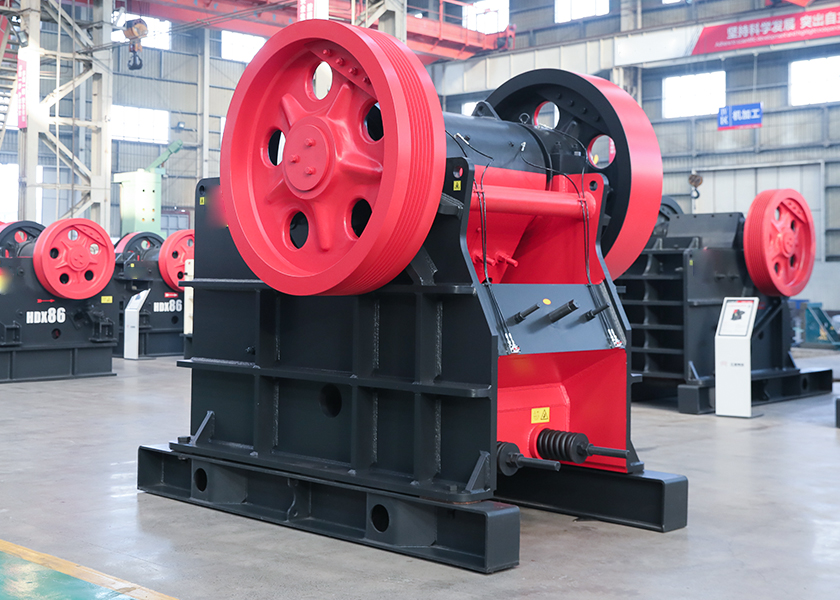

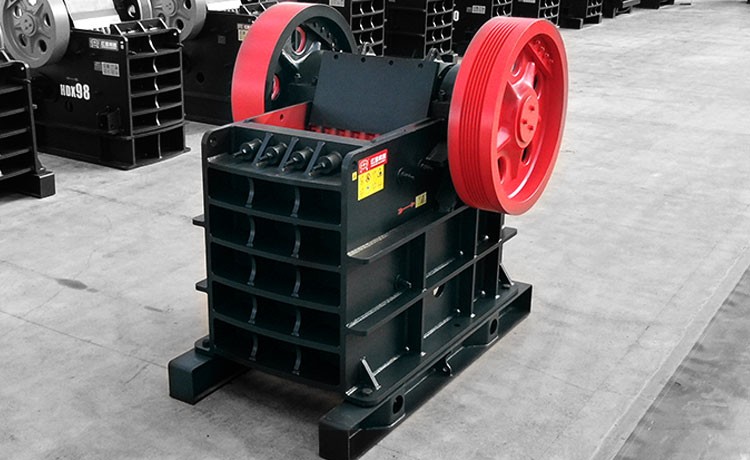

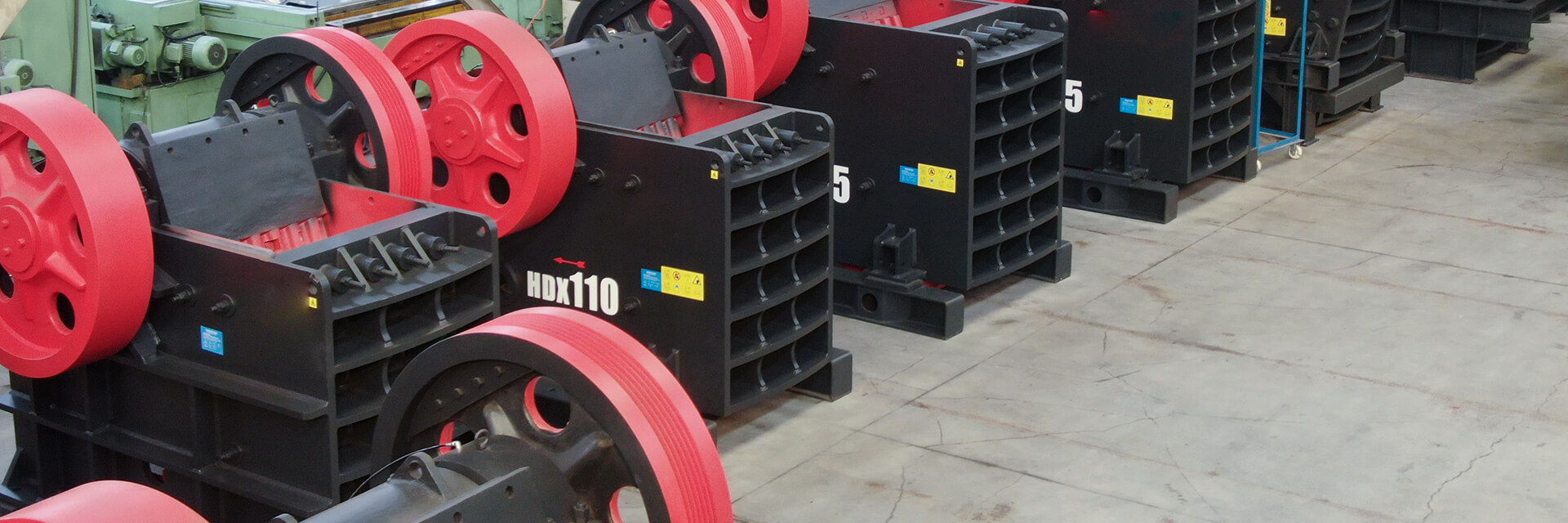

HD Series German Type Jaw Crusher

In mining and crushing industry, jaw crusher, as the primary crusher in a crushing line, its performance plays an important role in the running of complete crushing line. Therefore, users have an increasing demand on the capacity and stability of jaw crusher. In accordance with the market,engineers combining experiences in the crushing industry,have developed HD high-efficiency jaw crusher together with German engineers; it makes a significant breakthrough of capacity and quality — improving in the crushing production line.

Contact Us e-mail

Advantages

  • Big crushing force

    With large bearing and forging spindle; largebearing force.

  • High capacity

    The low-suspension movement mechanism design provides a higher capacity .

  • Easy to maintain

    Application ofhigh wear-resisting toothed plate; Long maintenance period; and cost-saving.

  • Low fault rate

    Reliable performance; Optimized design; Low fault rate.

Technical Specifications

Model Feeding opening size(mm) Max.Feeding size (mm) Adjustment range of discharge port(mm) Capacity(t/h) Power(kw) Dimensions L×W×H (mm)
HD72(57) 460×720 425 45-100 50-120 6P   55 2100×1556×1640
HD86(69) 580×860 500 50-150 60-280 8P   75 2200×1754×1810
HD98(751) 680×980 630 75-175 110-410 8P   110 2660×1960×2175
HD110(912) 850×1100 750 100-200 170-550 6P   132 2960×2381×2556
HD125 950×1250 900 125-225 280-750 8P   160 3500×2614×2925

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding opening size(mm) Max.Feeding size(mm) Capacity (t/h)
HD72(57) 460×720 425 50-120
HD86(69) 580×860 500 60-280
HD98(751) 680×980 630 110-410
HD110(912) 850×1100 750 170-550
HD125 950×1250 900 280-750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
