CI Series Impact Crusher CI Series Impact Crusher

CI Series Impact Crusher

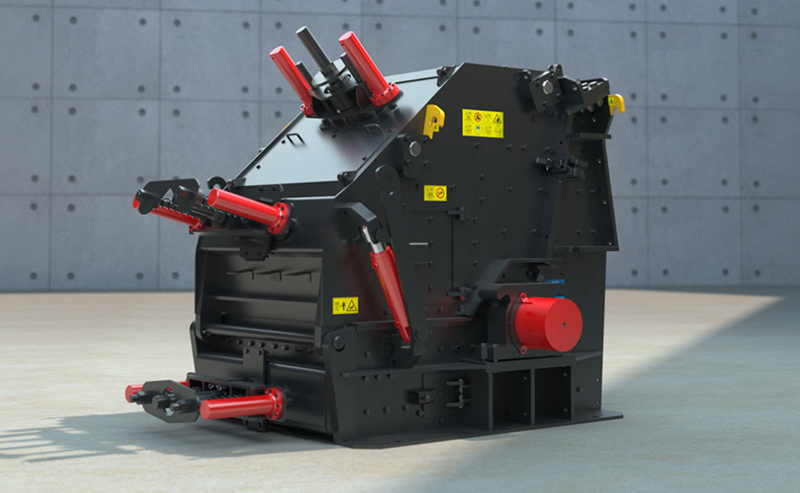

CI series of new type impact crusher integrates the current domestic and international advanced impact crusher technology, the rotor and crushing cavity are refined design for different applications, and a large number of new high wear-resistant materials are used, which are greatly improved the performance and processing capacity of the equipment . It exhibits excellent crushing effect in applications of industries such as medium hardness and low abrasive quarrying and gravel, cement, concrete and asphalt recycling, slag recycling etc.

Contact Us e-mail


  • The precise design of the rotor and cavity type, speed and power are reasonably matched to meet the different applications of coarse crushing, medium and fine crushing and material recovery;

  • The sturdy heavy-duty rotor structure improves the equipment handling capacity and crushing ratio; the high-quality welding structure ensures that the machine can withstand the maximum impact and obtain a good crushing effect;

  • The ship plate hammer, firm locking structure, has a good impact resistance, anti-wear properties and maintain a stable discharge particle size;

Completely new design

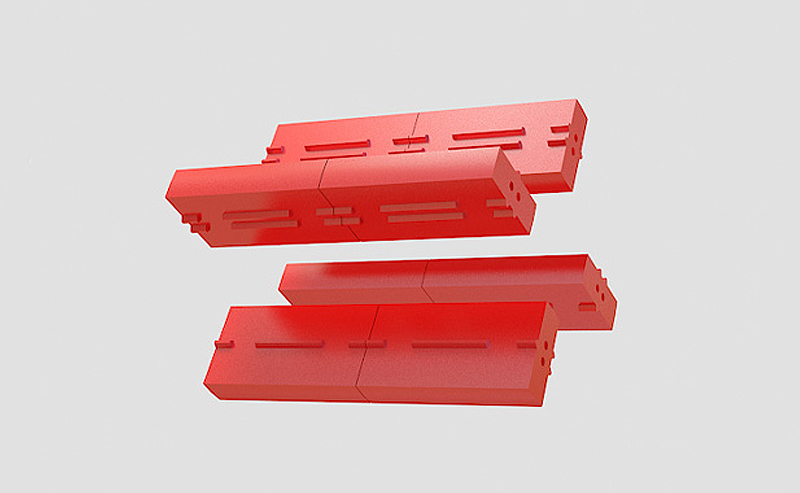

  • Unique hammer locking system

    The unique shape of the blow bar and the firm locking structure make the blow bar have good impact resistance and abrasion resistance and maintain a stable discharge particle size.

  • Multi-functional hydraulic device

    The hydraulic adjustment device has the function of automatic overload protection, which can quickly complete the replacement of wear parts and control the discharge granularity and gradation of the equipment.

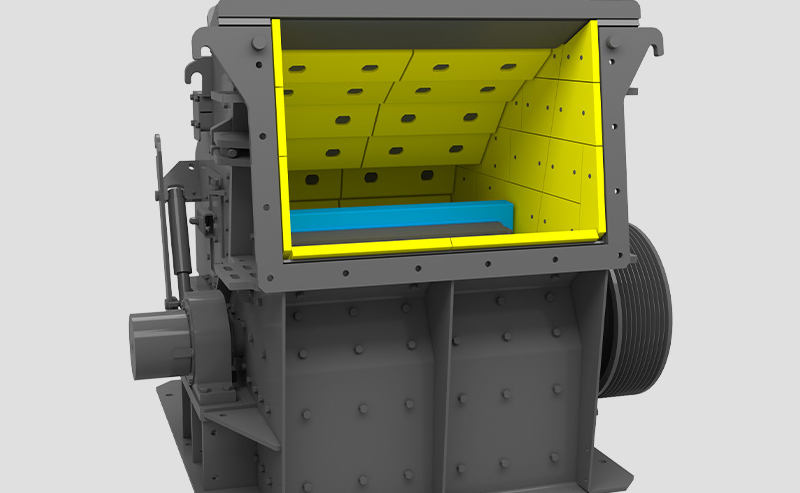

  • New high wear-resistant material

    The modular design makes most of the wearing parts interchangeable, effectively reducing the consumption of wearing parts, extending the replacement cycle and saving costs.

Technical Specifications

Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
C11321 300 315 130-430 2955×3285×2585
C11521 350 2×(200-250) 200-600 3450×3620×2770
Cl1524 350 2×315 240-700 3450×3925×2855
Cl1630 400 710-800 300-900 3693×4520×3173


Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712
Model Maximum Feeding Size (mm) Capacity(t/h)
CI1110 250 60-210
CI1213 300 80-280
CI1316 300 100-350
C11321 300 130-430
C11521 350 200-600
Cl1524 350 240-700
Cl1630 400 300-900


Model Maximum Feeding Size (mm) Capacity(t/h)
CI1313 600 100-480
CI1415 600 120-600
CI1620 800 220-900
CI2023 800 200-2000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
