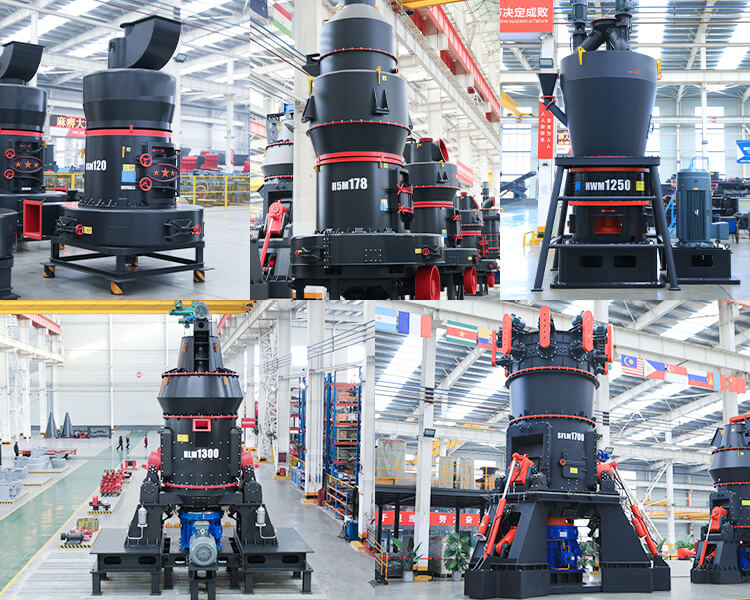

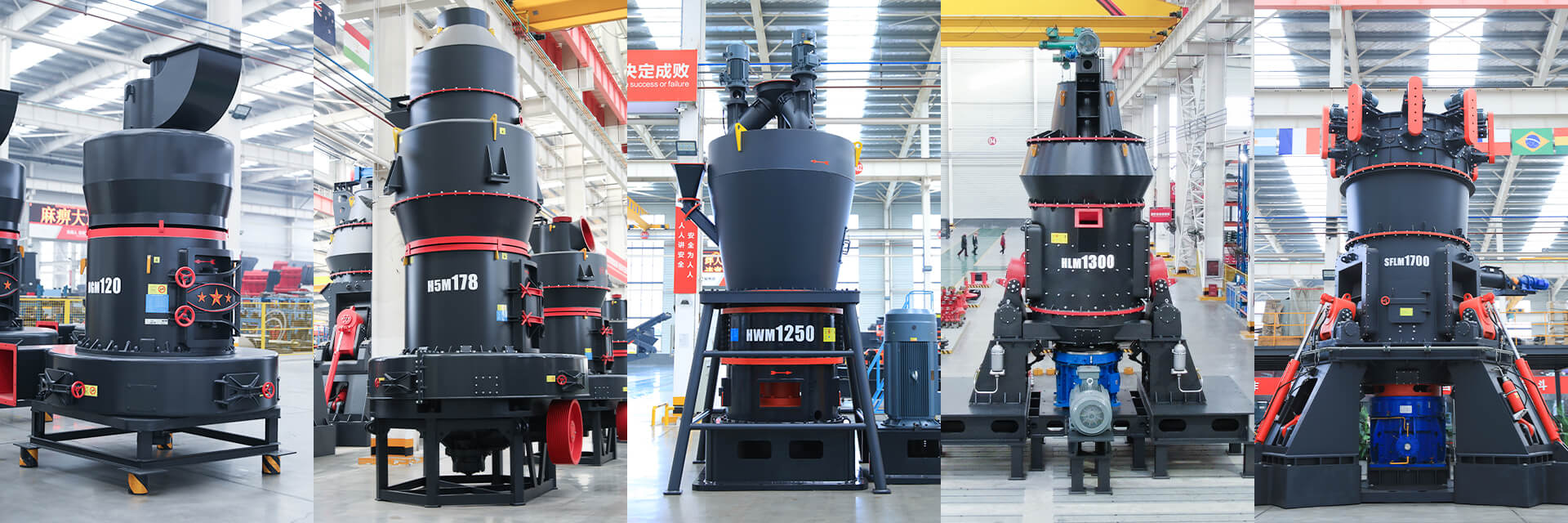

Powder Grinding Mill

Raw Material Processing Non-metallic ores, such as limestone, gypsum, dolomite, potassium feldspar, barite, talc, diabase, quartzite, bentonite, etc.

Are you interested in our machines?

Chat Online

Home Products Powder Grinding Mill

Brief Introduction

Grinding mills are widely used to process over 280 varieties of non-metallic mineral materials—such as those found in the mineral, chemical, and construction industries—into fine powders. These materials must be non-flammable, non-explosive, have a Mohs hardness of no more than 9.3, and a moisture content not exceeding 6%.

It is suitable for—barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, cement, phosphate ore, gypsum, and more.

The finished product particle size ranges from 80 to 325 mesh and can be adjusted as needed. Some materials can even achieve a fineness of 600 mesh.

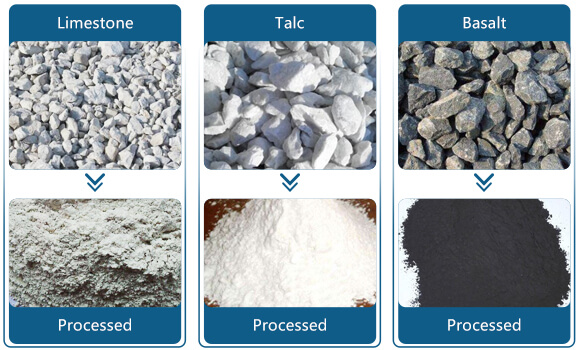

Material image

Working Principle

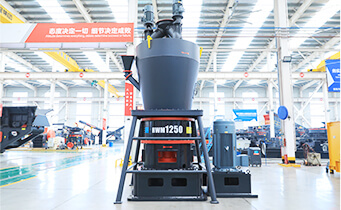

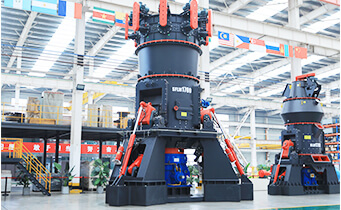

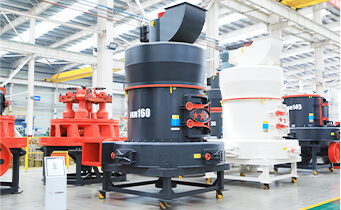

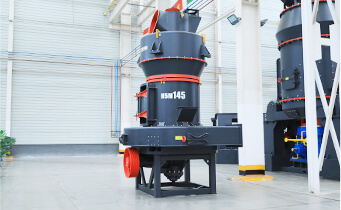

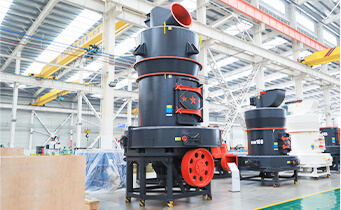

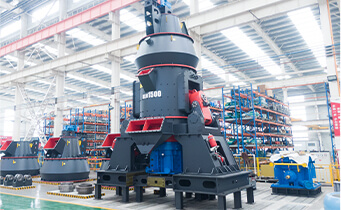

Featured Products

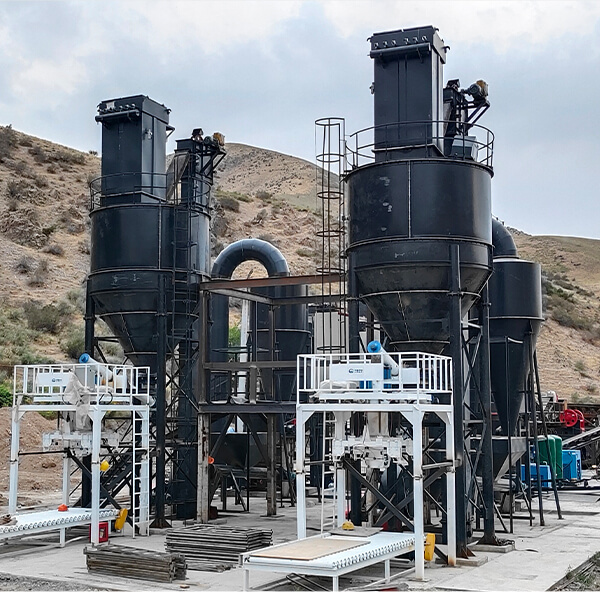

Equipment Advantages

① Split modular design for easy maintenance.

② Gear reducer drive system with a compact design.

③ Independent grinding rollers and specialized wear-resistant scraper heads improve grinding efficiency while reducing the cost of replacing wear parts by more than 50%.

④ With no resistance waves or curved air ducts, air resistance at the inlet of the entire closed-loop circulation system is significantly reduced, thereby increasing production capacity by 15%.

⑤ The addition of a large cyclone dust collector, combined with a sealed air feeder, significantly improves explosive yield and reduces explosive backflow.

Equipment Advantages

Technical parameters

Model Feeding size
(mm)		 Finished product size
(mm)		 Capacity
(t/h)		 Grinding ring diameter
(mm)		 Number of grinding roller Power of main machine
(kW)		 Blower power
(kW)		 Analyzer power
(kW)		 Transmission type
HGM88 <25 0.25-0.015 0.4-5 908 3 22 22 5.5 V-belt transmission
HGM95 <25 0.25-0.015 0.6-7 1006 3 37 37 7.5
HGM120 <25 0.25-0.015 1.2-15 1280 3 55 75 15 Reducer transmission
HGM130 <25 0.25-0.038 1.6-21 1400 4 75 90 18.5
HGM138 <25 0.25-0.038 2-25 1510 4 90 110 22
HGM160 <30 0.25-0.038 2.7-28 1770 5 132 160 22/30
HGM175 <35 0.25-0.038 3-35 1900 5 185 200 30
HGM190 <40 0.25-0.038 5-40 2040 4 250/280 250/280 45/55

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity
(t/h)		 Power of main machine
(kW)
HGM88 0.4-5 22
HGM95 0.6-7 37
HGM120 1.2-15 55
HGM130 1.6-21 75
HGM138 2-25 90
HGM160 2.7-28 132
HGM175 3-35 185
HGM190 5-40 250/280

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Case Studies and Pricing

Our milling machines have been exported to over 160 countries, including Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, and South Africa. Furthermore, we offer you factory-direct pricing and maximum discounts. Additionally, if you are new to the industry, we provide professional advice and solutions.

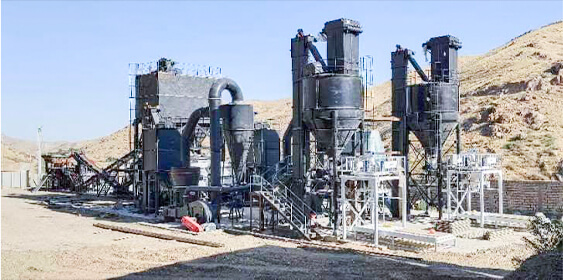

Case image 1

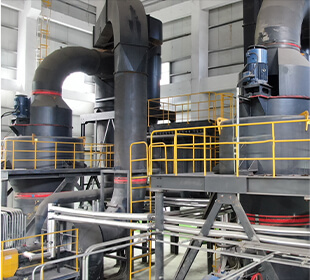

Case image 2

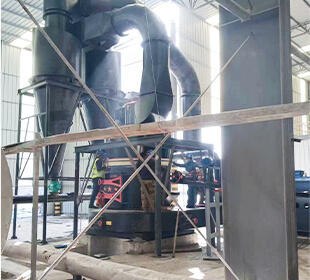

Case image 3
