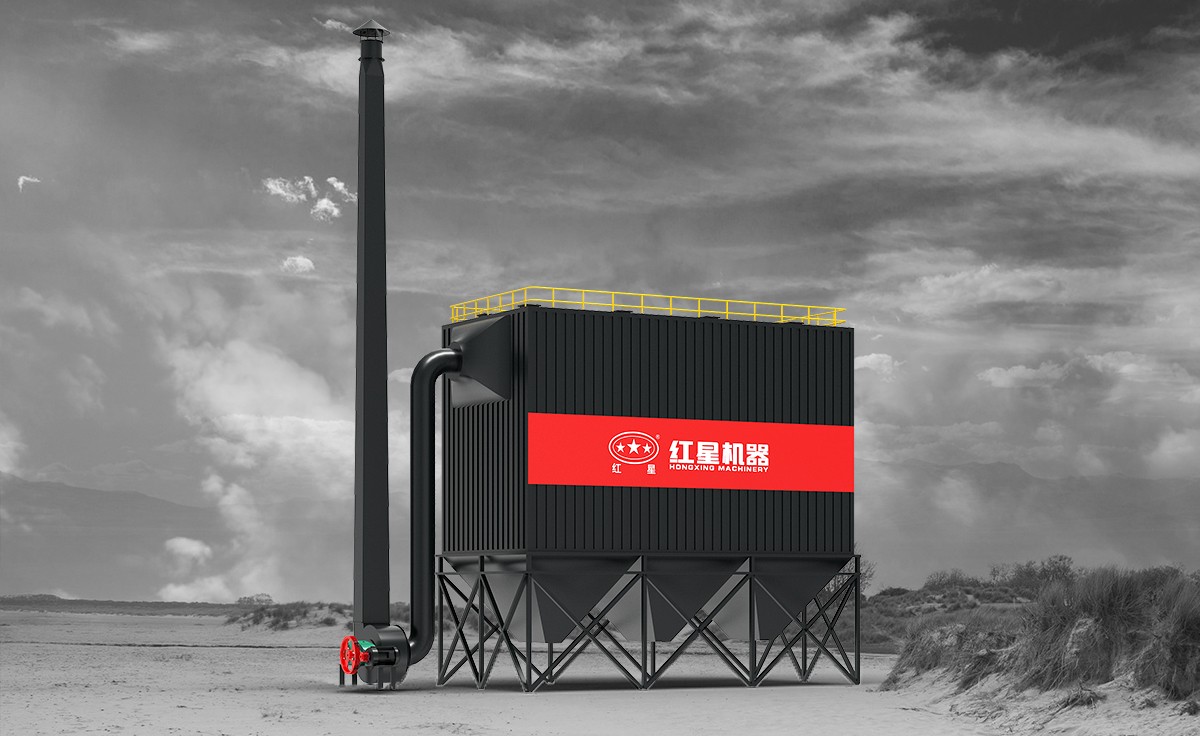

PPCS Series Air Box Pulse Dust Collector PPCS Series Air Box Pulse Dust Collector

PPCS Series Air Box Pulse Dust Collector

PPCS series air box pulse bag dust collector is widely used in building materials, cement, metallurgy, machinery, chemical and refractory industries, especially for cement plant crushing, packaging, warehouse roof, clinker cooling machine and all kinds of mills and other dust collection system (or dust removal system), strong applicability.

Contact Us e-mail

Advantages

  • Off-line cleaning

  • Wide application range

  • Large processing air volume

  • High dust collection efficiency

Technical Specifications

Model Air volume (m³/h) Filtration velocity (m/min) Total filtra tion area (m²) Net filtration area (m²)
PPCS 32-3 6900 1.2-2.0 93 62
PPCS 32-4 8930 124 93
PPCS 32-5 11160 155 124
PPCS 32-6 13390 186 155
PPCS 64-4 17300 248 186
PPCS 64-5 22300 310 248
PPCS 64-6 26700 372 310
PPCS 64-7 31200 434 372
PPCS 64-8 35700 496 434
PPCS 96-4 26800 372 279
PPCS 96-5 33400 465 372
PPCS 96-6 40100 557 465
PPCS 96-7 46800 650 557
PPCS 96-8 53510 744 650
PPCS 96-9 60100 838 744
PPCS96-2X5 66900 929 936
PPCS96-2X6 80700 1121 1028
PPCS96-2X7 94100 1308 1215
PPCS96-2X8 107600 1494 1401
PPCS96-2X9 121000 1681 1588
PPCS96-2X10 134500 1868 1775

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Air volume (m³/h) Filtration velocity (m/min) Total filtra tion area (m²) Net filtration area (m²)
PPCS 32-3 6900 1.2-2.0 93 62
PPCS 32-4 8930 124 93
PPCS 32-5 11160 155 124
PPCS 32-6 13390 186 155
PPCS 64-4 17300 248 186
PPCS 64-5 22300 310 248
PPCS 64-6 26700 372 310
PPCS 64-7 31200 434 372
PPCS 64-8 35700 496 434
PPCS 96-4 26800 372 279
PPCS 96-5 33400 465 372
PPCS 96-6 40100 557 465
PPCS 96-7 46800 650 557
PPCS 96-8 53510 744 650
PPCS 96-9 60100 838 744
PPCS96-2X5 66900 929 936
PPCS96-2X6 80700 1121 1028
PPCS96-2X7 94100 1308 1215
PPCS96-2X8 107600 1494 1401
PPCS96-2X9 121000 1681 1588
PPCS96-2X10 134500 1868 1775

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
